Standing Seam Metal Roof Roll Forming Machine
Cangzhou Dixin Roll Forming Machine Co., Ltd.- Tile Type：Colored Steel
- Certification：CE, ISO
- Condition：New
- Customized：Customized
- Usage：Roof
- Transmission Method：Hydraulic Pressure
Base Info
- Model NO.：Customized
- Transport Package：Nude
- Specification：CE SGS ISO
- Trademark：Dixin
- Origin：Botou, Hebei, China
- HS Code：84552210
- Production Capacity：500 Sets,Month
Description
Gutter roll forming machine
Item
Specification
Material
Type
Pre-painted steel coil & galvanized coils
Thickness
0.3-0.8mm
Yield strength
235Mpa.Q345Mpa, Q550Mpa
Roller material
Quenched and tempered treatment,
hard chrome coated.05-0.07mm
Forming speed
About 15-20m/min
Output speed
13-15m/min
Speed adjusting mode
AC Frequency
Roller drive
Decelerating motor + Chain drive
Cutting mode
Hydraulic cutting
Cutter material
Cr12 mould steel
Length measurement
Encoder
Control mode
Panasonic or Delta PLC
Operating mode
Button + Panasonic/Delta Touch screen
Main motor
5.5KW
Hydraulic station motor
4KW

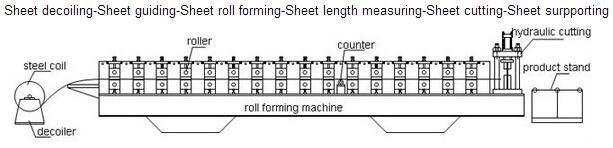

Working flow
We are well recognized manufacturer and supplier of Cold Roll Forming Machine which are supplied to various industries across the nation. Our products are technically advance and designed with the use of latest standard features and functions. These products are highly durable and easy to use. We guarantee superior quality which are duly tested and provided in stipulated time frame.
A. Foreign commissioning
We will arrange our professional engineers to help you install and debug the machine well. Buyer should pay$100 for each engineer every day and responsible for transportation (including round-trip ticket), insurance, and suitable accommodation.
B.Warranty period
1.The warranty will be maintenance, maintain in the guarantee period of 18months starting from delivery. Because of the quality of equipment during guarantee period, we will provide the parts to charge freely, which is in the conditions of correct operation.
C. Training
During installation and adjustment of the equipment, our engineers are able to provide the training that
buyer's personnel request to operate and maintain the equipment.
Including foundation construction, electrical works, hydraulic oil, safe operation and non-standard safety items, testing material and etc.
D. Services
Lifetime services to every customer.
1. should be strictly in accordance with the requirements of the operating instructions to operate on the ban did not use machines or novice direct induction operation.
2. Each boot time to regularly check the adequacy of lubricating oil, check the oil if there is deterioration of the situation.
3. Color tile press equipment should be kept clean, regular color steel roll forming machine for dust protection.
4. Check the color steel tile press of a variety of connectors or fasteners are loose or dropped off, problems to deal with in a timely manner.
5. Regularly check the repair switch, insurance, handle, to ensure its reliable operation.
6. strict rules for safe working practices standard operating personnel, regular training basics of color steel tile press and prevent personal safety.
7. After you are finished using machinery to turn off the power and other facilities, there is electricity in the place you want to join the safety alert symbol.
8. A good waterproof security measures, strict rules regulate the behavior of the plant operator.
FAQ
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.
Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What's your standard trade terms ?
A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.
