• Model NO.：CLXCA-60
• Rotary Speed：25000r,Min
• Air Consumption：30L,Min
• Diller Dia.：5 or 4mm
• Slot Length：0-60mm
• Air Pressure：0.5-0.8MPa
• Machine Dimension：1200*1200*1800mm
• Weight：300kg
• Usage：UPVC Window Water Slot Milling
• Transport Package：Wooden
• Specification：CLXCA-60
• Trademark：Truetec
• Origin：China
• HS Code：846599
• Production Capacity：500sets,Year

Basic Info.

Model NO. CLXCA-60 Rotary Speed 25000r/Min Air Consumption 30L/Min Diller Dia. 5 or 4mm Slot Length 0-60mm Air Pressure 0.5-0.8MPa Machine Dimension 1200*1200*1800mm Weight 300kg Usage UPVC Window Water Slot Milling Transport Package Wooden Specification CLXCA-60 Trademark Truetec Origin China HS Code 846599 Production Capacity 500sets/Year

Product Description

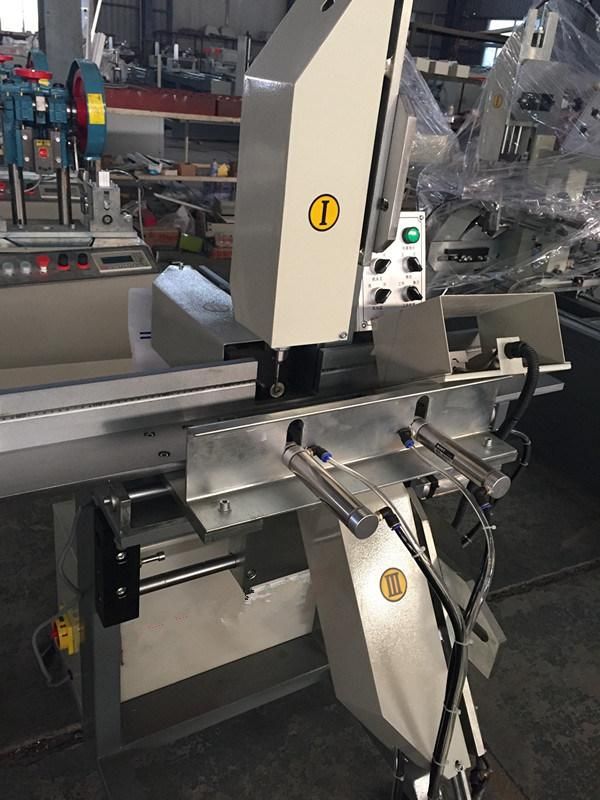

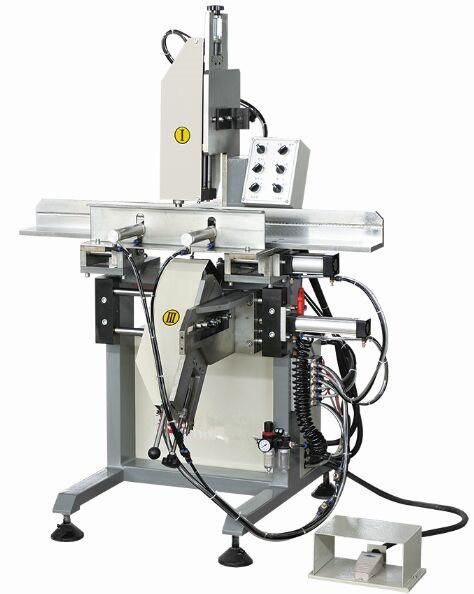

Automatic water slot milling machine for UPVC window door making

Machine feature:
- Milling all kinds of water slots and air pressure balance groove
- Full design with high rigidity, processing beautiful water slot, high appearance quality.
- Automatic cutter changer on the under head, one time clamp to finish water slots processing
- High efficiency , suitable for mass production
- Special feeling system, need no special maintenance, high milling quality.
- Water slot milling length adjustable within 60mm, wide adaptability.
- Adopt linear bearing motion to ensure the processing precision.
Parameter:

Air Pressure	0.5~0.8MPa	Air Consumption	30L/min
Input Voltage	220V 50Hz or As Customer Specification	Input Power	1.14Kw
Milling Cutter Revolution	25000r/min	Slot length	0~60mm
Diller dia.	5 or 4mm	Overall Dimension	1200×1200×1800mm
Weight	300kg

Machine details:








1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

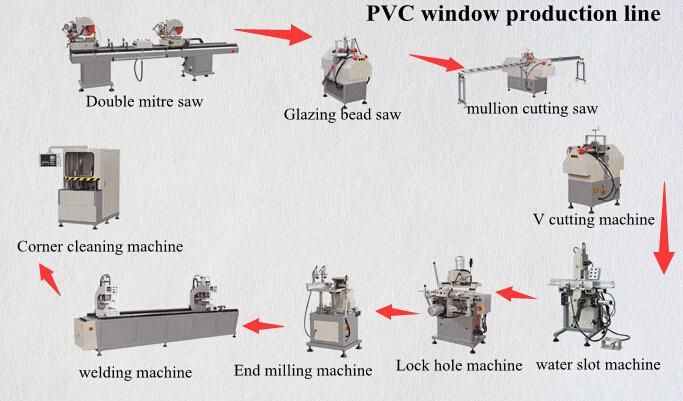

4. If I make PVC window and door, how many basic machines do i need?
