China UPVC/PVC Window Profile Automatic Water Slot Milling Machine
Shandong Truetec Machinery Co., Ltd.- Condition：New
- Certification：CE
- Automatic Grade：Semi-Automatic
- CNC or Not：not CNC
- Voltage：380V
- Input Power：0.76kw
Base Info
- Model NO.：CLXC01-2
- Rotary Speed：25000r,Min
- Air Consumption：30L,Min
- Diller Dia.：5 or 4mm
- Slot Length：30-60mm
- Air Pressure：0.5-0.8MPa
- Machine Dimension：1925*750*1600mm
- Weight：280kg
- Usage：UPVC Window Water Slot Milling
- Transport Package：Wooden
- Specification：CLXC01-2
- Trademark：Truetec
- Origin：China
- HS Code：846599
- Production Capacity：500sets,Year
Description
Basic Info.
Model NO. CLXC01-2 Rotary Speed 25000r/Min Air Consumption 30L/Min Diller Dia. 5 or 4mm Slot Length 30-60mm Air Pressure 0.5-0.8MPa Machine Dimension 1925*750*1600mm Weight 280kg Usage UPVC Window Water Slot Milling Transport Package Wooden Specification CLXC01-2 Trademark Truetec Origin China HS Code 846599 Production Capacity 500sets/YearProduct Description

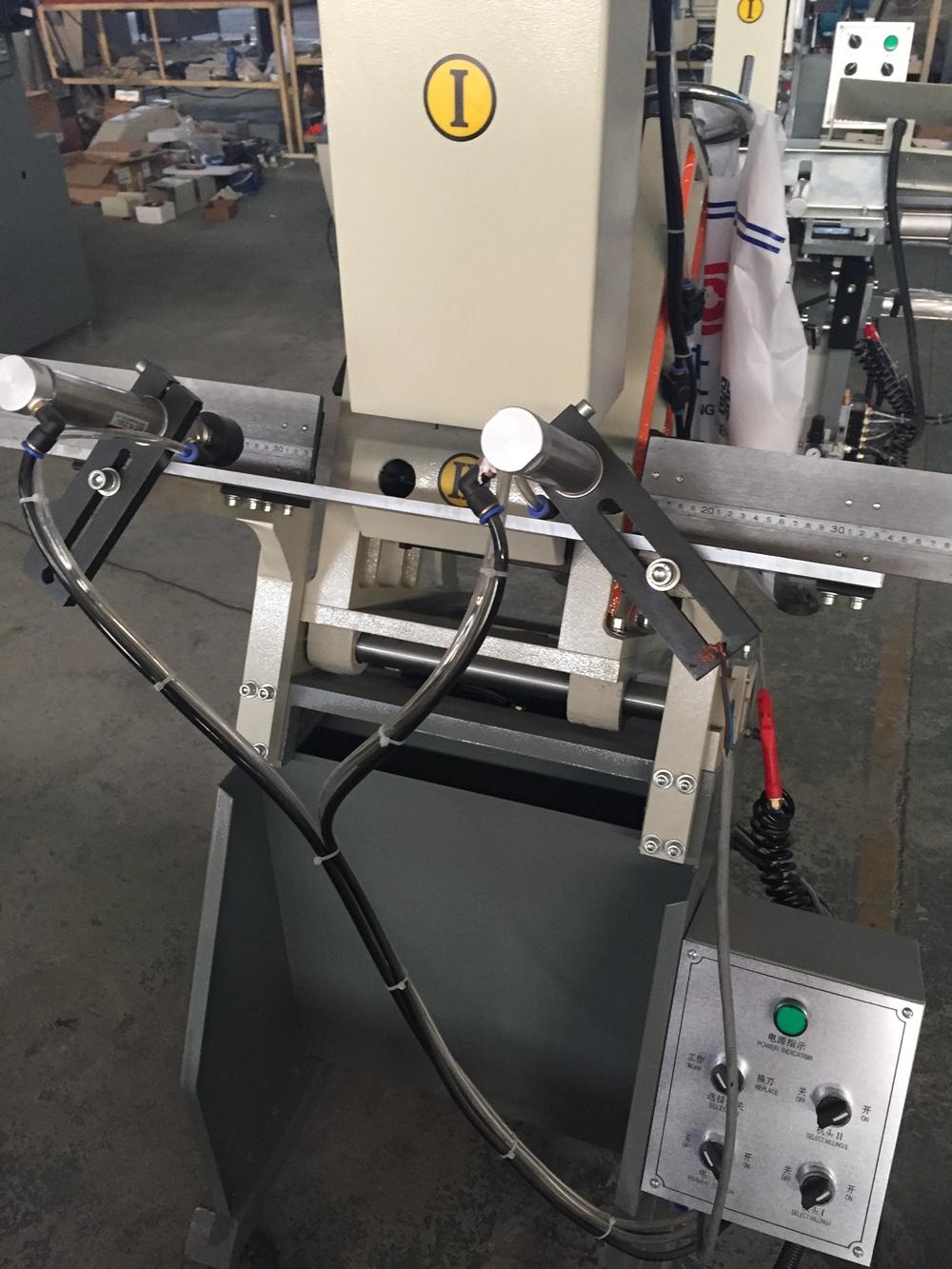

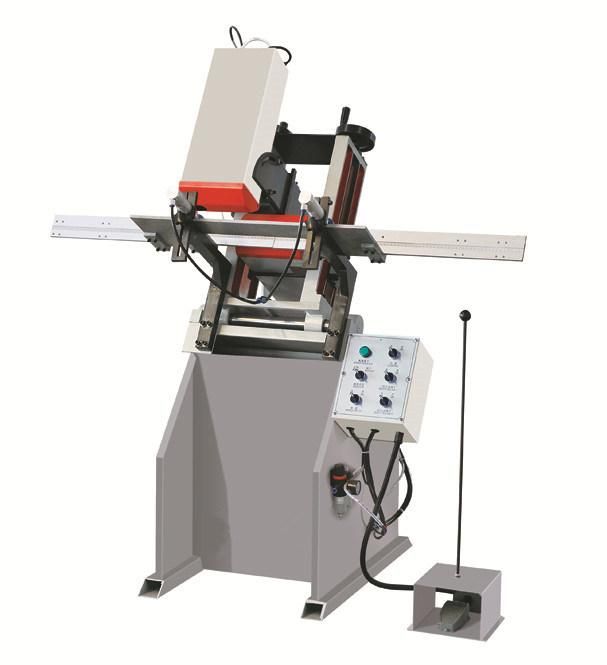

China UPVC/PVC window profile automatic water slot milling machine

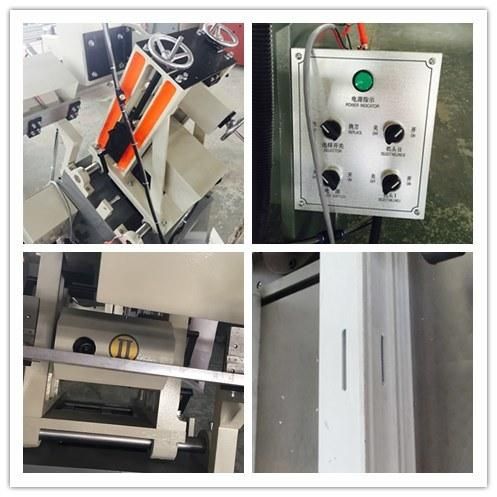

Machine feature:
- Milling all kinds of water slots and air pressure balance groove
- Special feeling system, need no special maintenance, high milling quality.
- Water slot milling length adjustable within 60mm, and its usage range is wide.
- Two milling heads can work together to meet various processing requirement.
Parameter:
| Model | CLXC01-2 | Air Consumption | 30L/min |
| Input Voltage | 220V 50Hz or As Customer Specification | Input Power | 0.76Kw |
| Milling Cutter Revolution | 25000r/min | Slot length | 30~60mm |
| Diller dia. | 5 or 4mm | Air Pressure | 0.5~0.8MPa |
| Weight | 280kg | Overall Dimension | 1925×750×1600mm |
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

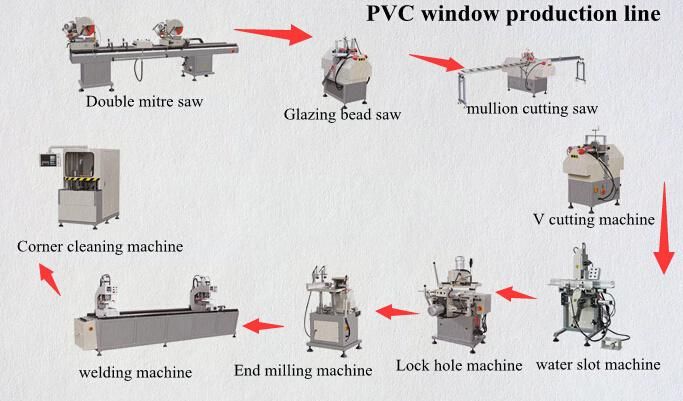

4. If I make PVC window and door, how many basic machines do i need?
