High Quality Low Cost Automatic Floor Decking Tile Panel Cutting Roll Forming Machine Manufacturer

Cangzhou Nexus Machinery Co., Ltd.
  • Tile Type：Galvanized Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Floor
  • Transmission Method：Electric

Base Info

  • Product Name：Metal Galvanized Sheet Floor Decking Roll Forming
  • Raw Material：Gi Steel, PPGI Steel
  • Thickness Range：0.8-1.5mm
  • Machine Power：22kw+5.5kw
  • Work Speed：10-15m,Min
  • Machine Weight：12 Tons
  • Warranty：1 Year
  • After-Sales Service：Engineer Is Availble to Overseas
  • Transport Package：Plastic Film & Steel Wire Fixed
  • Specification：12500mm*1500mm*1500mm(L*W*H)
  • Trademark：NEXUS MACHINERY
  • Origin：Cangzhou, China
  • HS Code：8455221000
  • Production Capacity：30 Sets , Month

Description

High Quality Low Cost  Automatic Floor Decking Tile Panel Cutting Roll Forming Machine ManufacturerMain motor power11kw*2Drive1'' single chainType:Wall boardMain shaft dia¢80mmmaterial45# forge steel and quenchedRoller material45# high grade forge steel ,chrome coated 0.05mmRoll station26 groupsRaw material0.8-1.5mmCoil width1219mmWorking speed10m--15m/min(Exclude cutting time)Length Tolerance±1.5mmWeight of machineAbout 12 tonsSize of machineAbout 12500×1800×1500mm L x W x HColor of machineYellow and BlueCoderOmron, made in JapanControlPLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)Computer operating paneltouching screenOther electrical elementSchneiderCuttingHydraulic cutting. Auto cutting when reach the set lengthHydraulic power5.5KWBlade materialCr12mov,quenched 58°-62°Working pressure16mpaCutting tolerance+/- 1.0mm

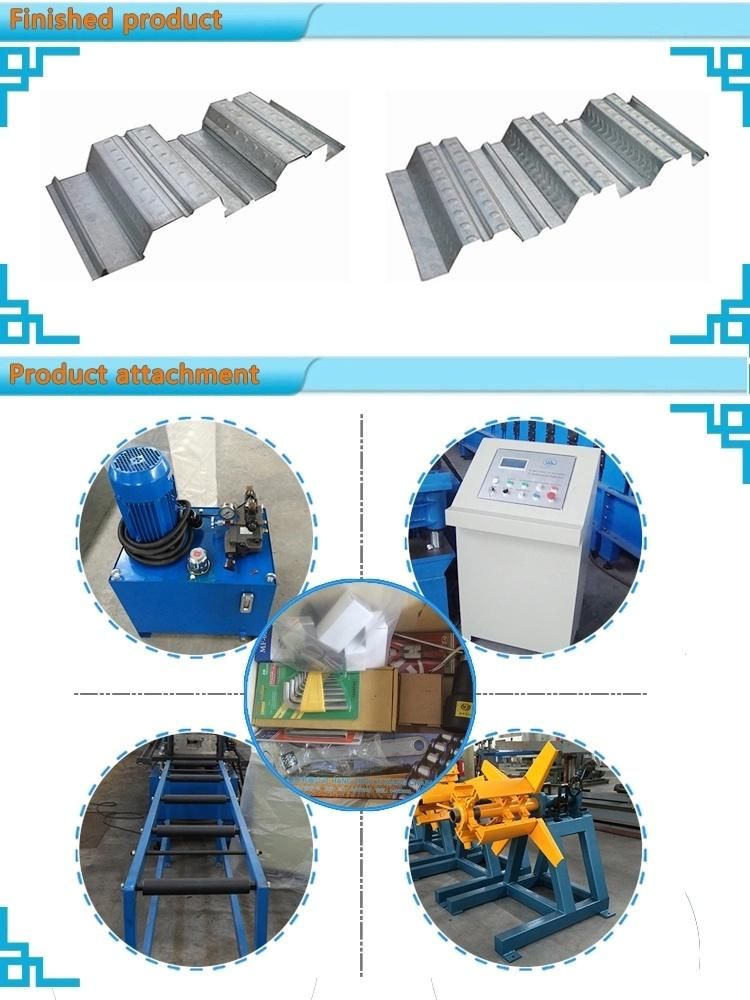

4. Equipment list :

No.Product Name       QTY
15T Manual decoiler          1
2High Quality Low Cost  Automatic Floor Decking Tile Panel Cutting Roll Forming Machine Manufacturer
 (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)		          1
3Passive Output table          2
Sum           4

5. Guarantee:

1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

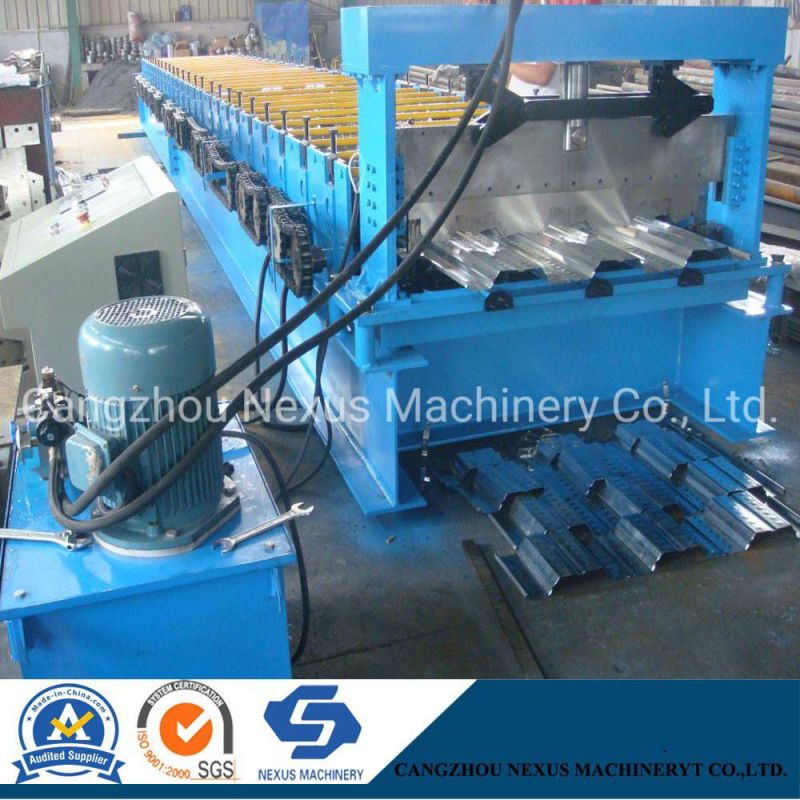

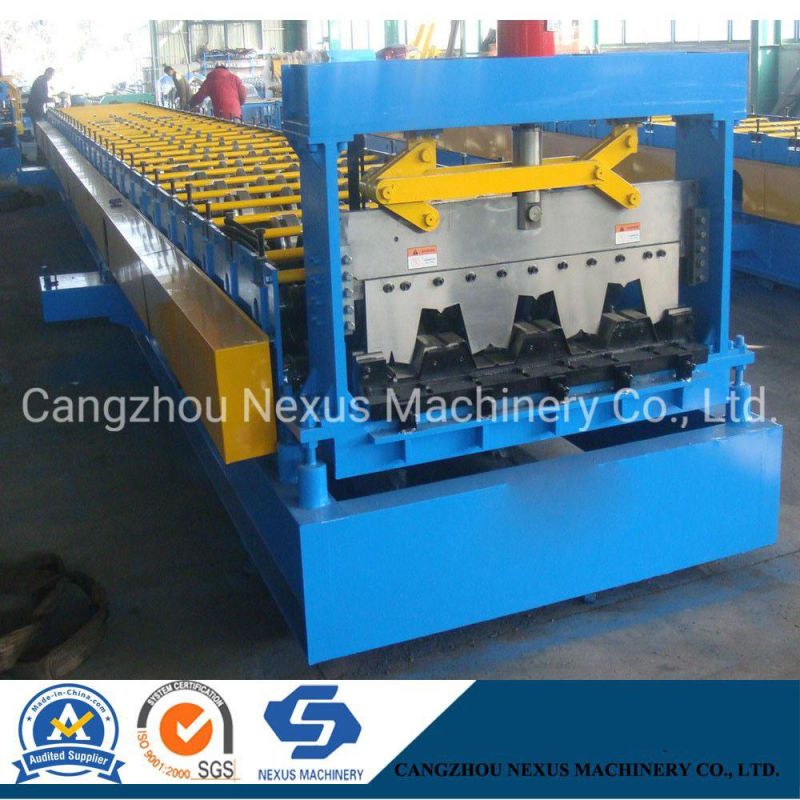

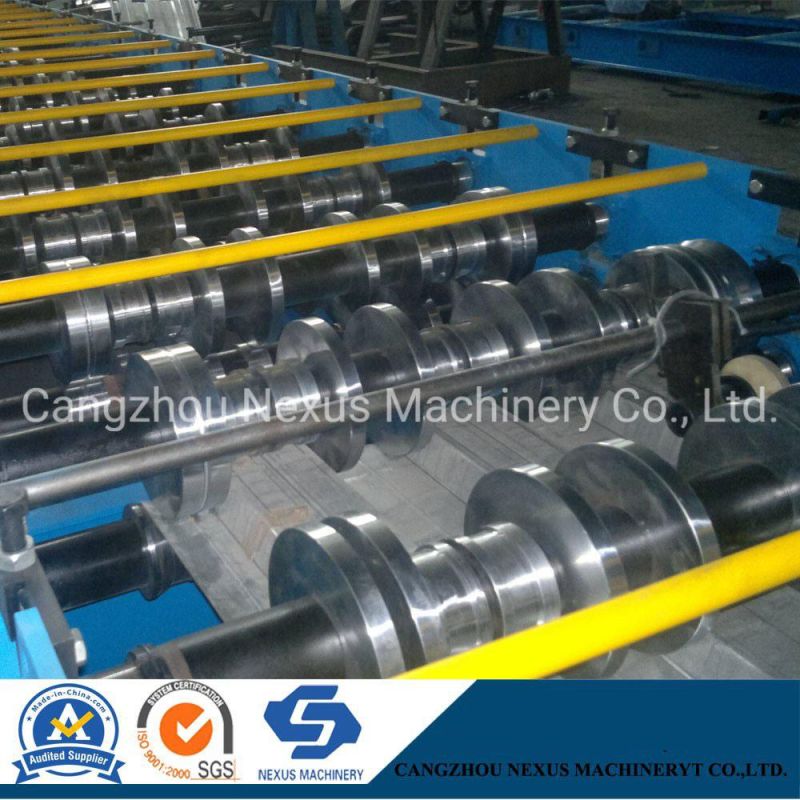

6. Photos of  High Quality Low Cost  Automatic Floor Decking Tile Panel Cutting Roll Forming Machine Manufacturer for Reference:

High Quality Low Cost Automatic Floor Decking Tile Panel Cutting Roll Forming Machine Manufacturer
High Quality Low Cost Automatic Floor Decking Tile Panel Cutting Roll Forming Machine Manufacturer
High Quality Low Cost Automatic Floor Decking Tile Panel Cutting Roll Forming Machine Manufacturer
High Quality Low Cost Automatic Floor Decking Tile Panel Cutting Roll Forming Machine Manufacturer
High Quality Low Cost Automatic Floor Decking Tile Panel Cutting Roll Forming Machine Manufacturer




7. Why Choose US?
1. More than 10 years experiences in manufacturing roll forming machines.
2. We use Automatic control software to manage productive information makes the whole automatic control system has an improvement in automaticity.
3. High performance in operation, maintenance, and debugging. Easy to load and unload.
4. Good machine quality, Competitive price and Fast delivery time and superior service.
