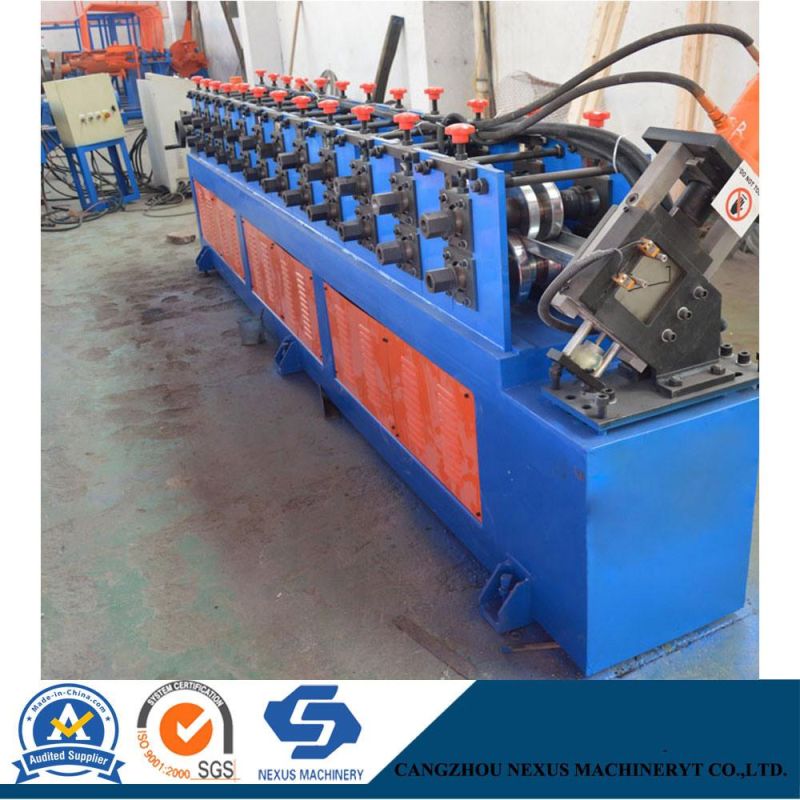

• Product Name：Steel Double C and U Shape Roll Making Line
• Coil Material Thickness：0.3-0.8mm
• Processing Material：Galvanized Steel
• Roller Material：Cr12MOV
• Diameter of Shaft：56mm
• Forming Speed：15-25m,Min
• Package：One Full Set of 20 Feet Container
• Transport Package：Control Box and Easy Damaged Parts: Protective PA
• Specification：60-27-28
• Trademark：Nexus Machinery
• Origin：Cangzhou
• HS Code：8455221000
• Production Capacity：10 Sets,Month

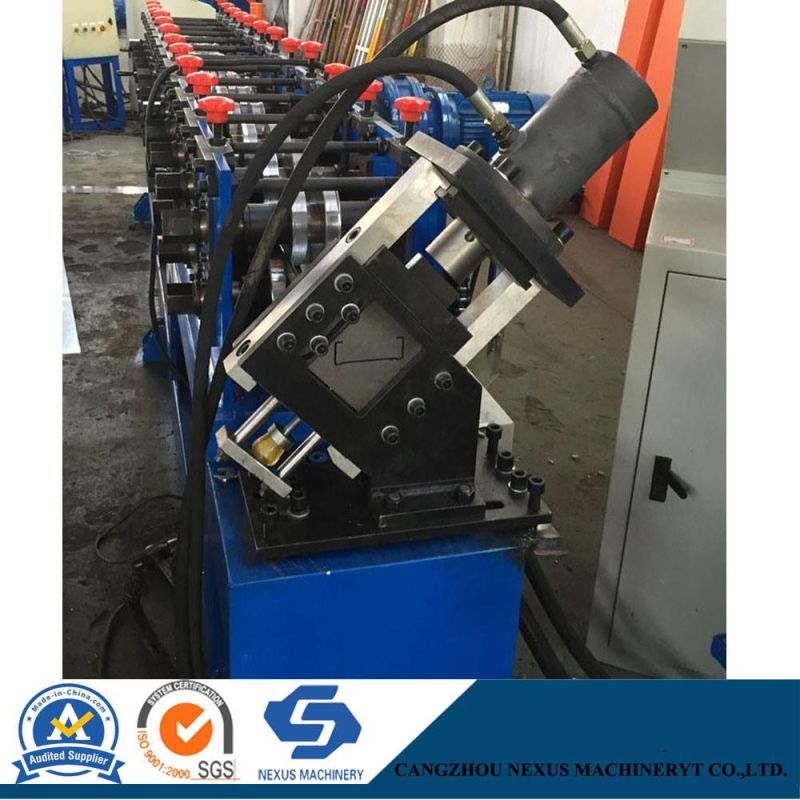

Article No.Item NameSpecification       1Feeding width500 mm coil sheet Effective width89 mm       2 Thickness of panel0.5-1.2 mm coil sheet       3Roller station12 stations       4Shaft Diameter 50-75 mm       5Productivity8-12 m/min       6Rollers' material45# steel forge       7 Shaft material 45# steel       8Weight3.5-5 tons       9length4.5-7 m      10Voltage380V 50Hz 3phases      11Control PLC      12Decoiler6 tons      13Motor3-7.5 kw      14Driving wayChain transmission      15Chain size0.6-1.5 inch      16Cutting systemHydraulic cutter



More Products for Your Choose:


FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made within 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
