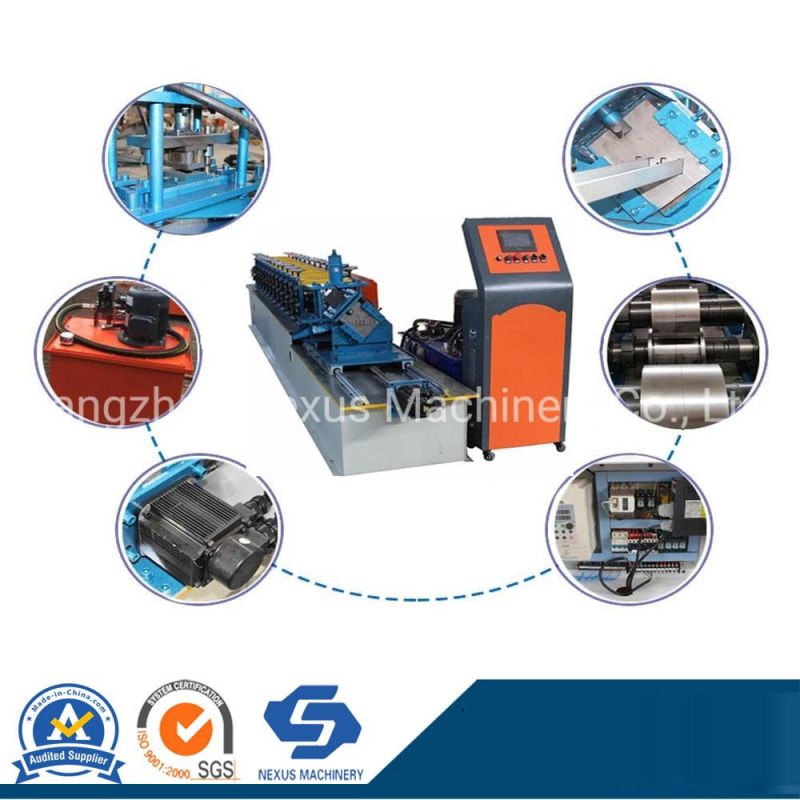

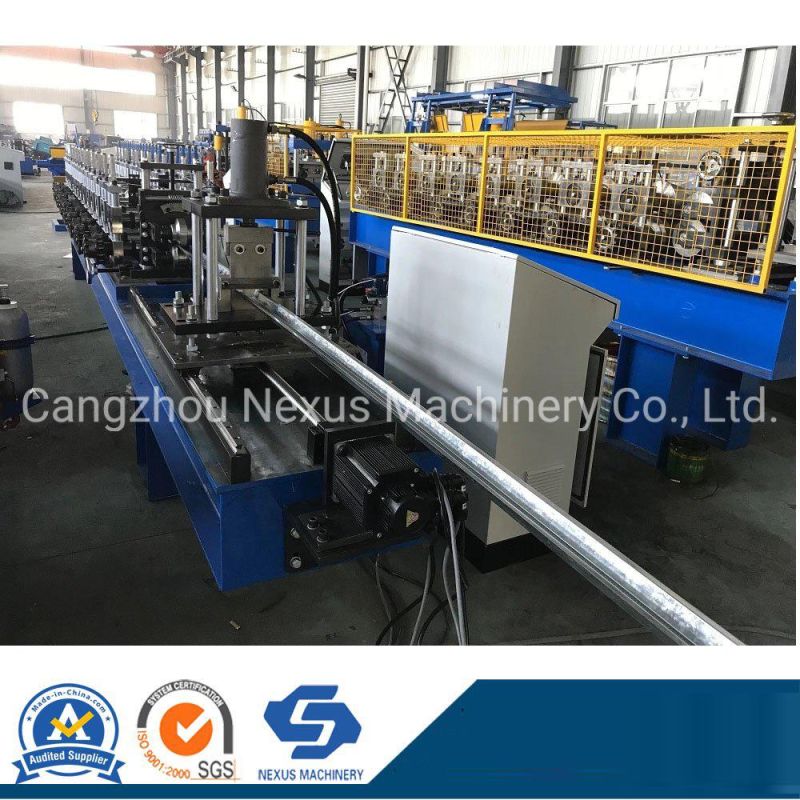

• Product Name：Light Gauge Steel Roll Forming Machine
• Coil Material Thickness：0.3-0.8mm
• Processing Material：Galvanized Steel
• Roller Material：Cr12MOV
• Diameter of Shaft：56mm
• Forming Speed：15-25m,Min
• Package：One Full Set of 20 Feet Container
• Transport Package：Control Box and Easy Damaged Parts: Protective PA
• Specification：60-27-28
• Trademark：Nexus Machinery
• Origin：Cangzhou
• HS Code：8455221000
• Production Capacity：10 Sets,Month

Forming speed(m/min)

0-30m/min  max

Not include the time of cutting

3.

Forming stations

12 stations

5.

Material of rollers

CR12

6.

Thickness of structure

30mm

7

Forming shaft diameter(mm)

70

8

Drive

Gear box

9

Type of cutting

Hydraulic cutting

10.

Control system

 PLC xinjie

11.

Install dimension(depend on the final design)

4.8m×0.6m×1.2m

Without panel length

12.

Total weight (Approx)

2.3T

Depend on final design

13.

Screen

Text screen /touch screen

Components

NO

Name

Unit

Qty

1

Man-made decoiler

set

1

• Max width 300mm
• Inner diameter -460-510mm
• Max loading capacity 1000kg
• Manual operating type manual expansion to tighten the coil
• Break down drive whole line stop while decoiler idle

2

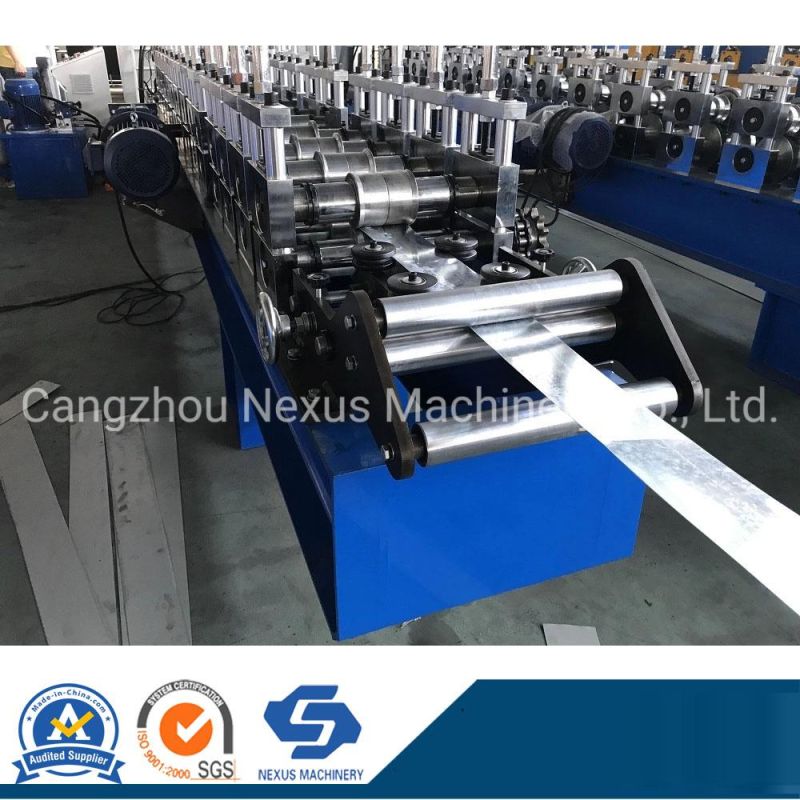

Feeding Table

set

1

3.

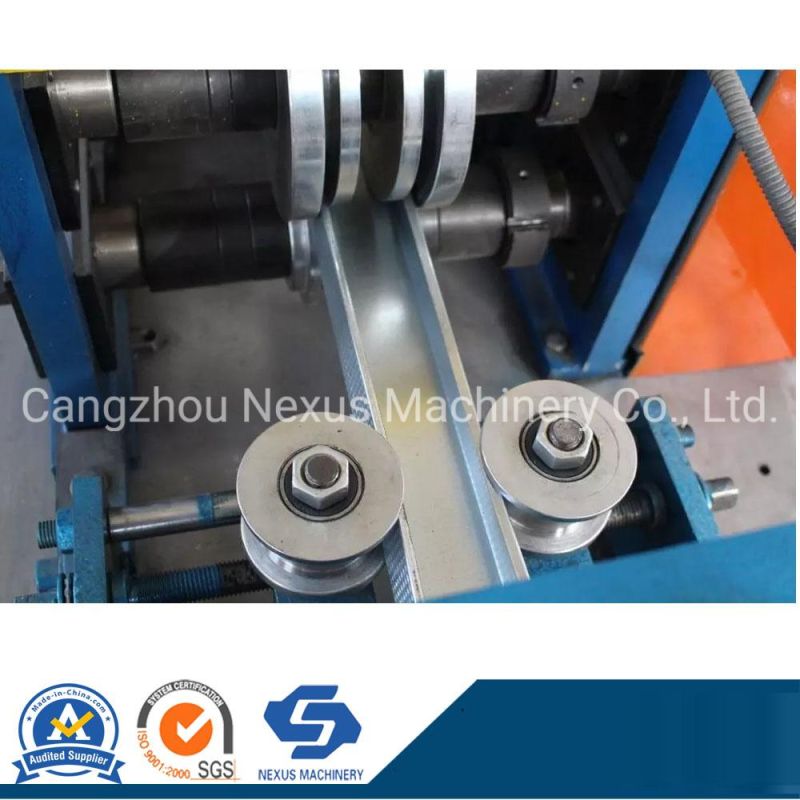

Forming Rollers

set

1

• Forming Station 16 nos
• Forming Rollers material Cr12
• Forming Rollers hard treatment HRC 58-60
• Shaft of roller Diameter 40mm
• Shaft material 40Cr,heat treatment, refine grinded
• Machine frame: steel welding
• Main sidewall thickness 25mm
• Machine driven by universal joints via gearbox
• Roll forming motor 5.5kw with frequency inverter controller
• Gearbox RV  worm gearbox

4.

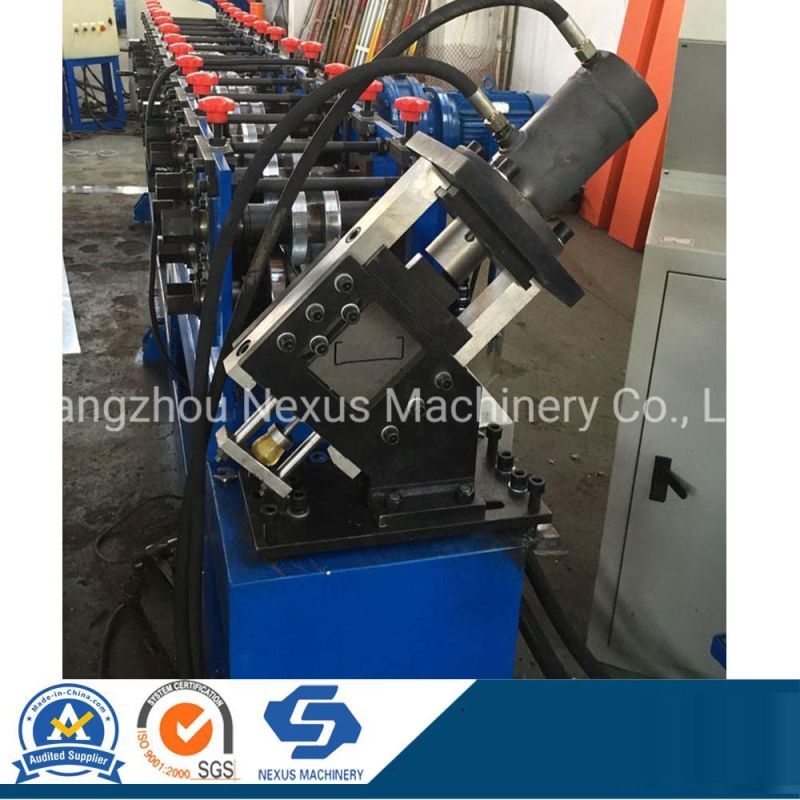

Hydraulic cutting

set

1

• Hydraulic pump stand 1 set
• Hydraulic Components taiwanese
• Hydraulic System discharging protection with wind cooler
• Edge cutting 2 sets both ends
• Fire testing hole  2 sets both ends
• Mould standard SKD-11 Steel Japanese
• Mould frame&plate S45C
• Mould pin SKH-9 steel Japanese
• All mould treatment  By slow-feeding Nc wire cutting

5.

Profile Discharger

set

1

• Driven  machinical Auto Head
• Operation Full automatic along with forming machine

6.

Electric Control system

set

1

• Frequency converter Silin ,Taiwanese
• PLC Fatek ,Taiwanese
• Touch screen weinview Taiwanese
• Profile length cutting forming machine stops then cut
• Operational controller: touch screen knob switch emg

Brake down and so on

(6)Power supplier  380V 50Hz 3phase

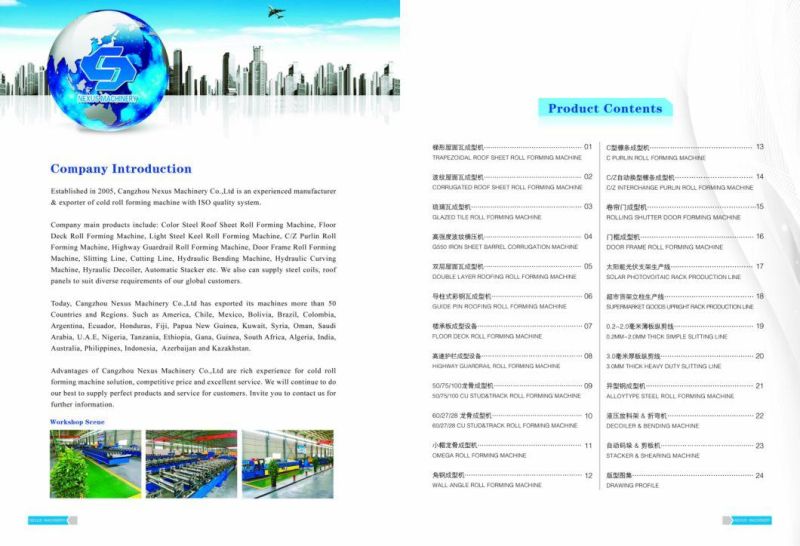

ABOUT US:
