• Product Name：C Z Purlin Roll Forming Machine
• Coil Material Thickness：1--3mm
• Processing Material：Galvanized Steel
• Roller Material：Cr12MOV
• Roller Station：12-18 Stations
• Driven：Chain Transmission
• Forming Speed：10-15m,Min
• Punching Type：Hydraulic Punching
• Cutting Type：Hydraulic Post-Cutting
• Operation Type：Touching Screen
• Transport Package：Plastic Film
• Specification：80-300
• Trademark：Nexus Machinery
• Origin：Cangzhou
• HS Code：8455221000
• Production Capacity：10

Basic Info.

Product Name C Z Purlin Roll Forming Machine Coil Material Thickness 1--3mm Processing Material Galvanized Steel Roller Material Cr12MOV Roller Station 12-18 Stations Driven Chain Transmission Forming Speed 10-15m/Min Punching Type Hydraulic Punching Cutting Type Hydraulic Post-Cutting Operation Type Touching Screen Transport Package Plastic Film Specification 80-300 Trademark Nexus Machinery Origin Cangzhou HS Code 8455221000 Production Capacity 10

Product Description

Automatic Change Size CZ Purlin Roll Forming Machine C60-250 Steel Frame Forming Machine  China Factory Steel Frame And Purlin Making Machines 2.5 mm C Z Purlin Roll Forming Machine is designed and produced in NEXUS company. We are roll forming machine manufacturer. We have rich experiences in purlin field. We have engineer and professional to produce China factory steel frame and purlin making machines  c z purlin roll forming machine.

Technical parameters :

Product Name	China Factory Steel Frame And Purlin Making Machines 2.5 mm C Z Purlin Roll Forming Machine
Configurations	Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
Control System	PLC Inverter Encoder Touch Screen
Main Frame	400mm H-Beam
Total Power	19.5 kw
Power Supply	380V, 3-Phase,50Hz
Forming Speed	12-24m/min
Roll Station	18 stands
Decoiler capacity	3.5 tons
Roller Diameter	80mm
Effective Width	80-300mm
Feeding Thickness	1-3.0mm
Backboard Thickness	20mm
Cutter Standard	GCr12
Roller Standard	Gcr15#
Overall Size	About 8500×1000×1400mm
Total Weight	About 6T
Custom	According to customer's requirements

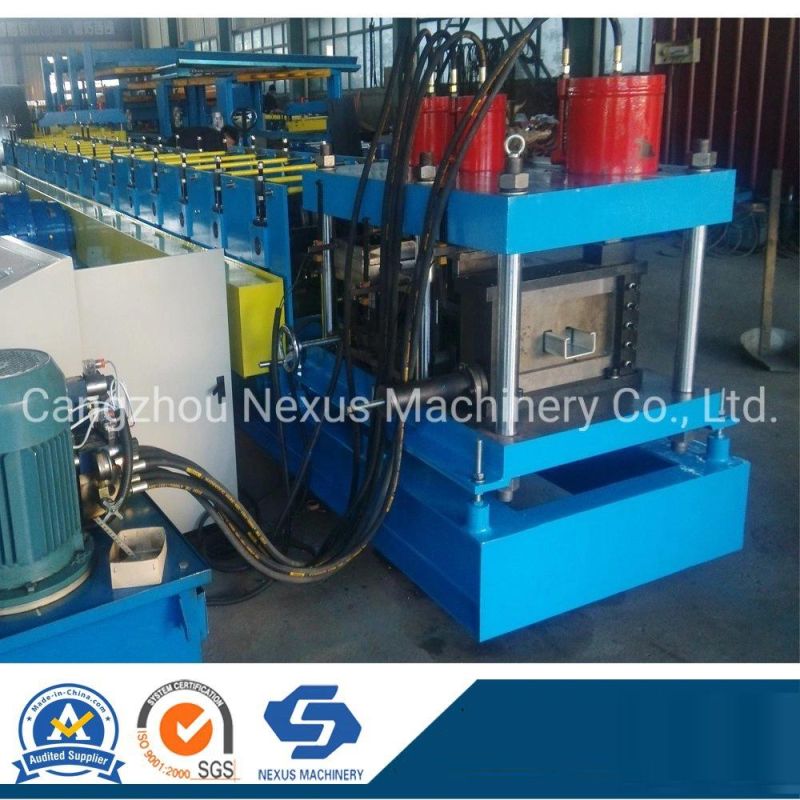

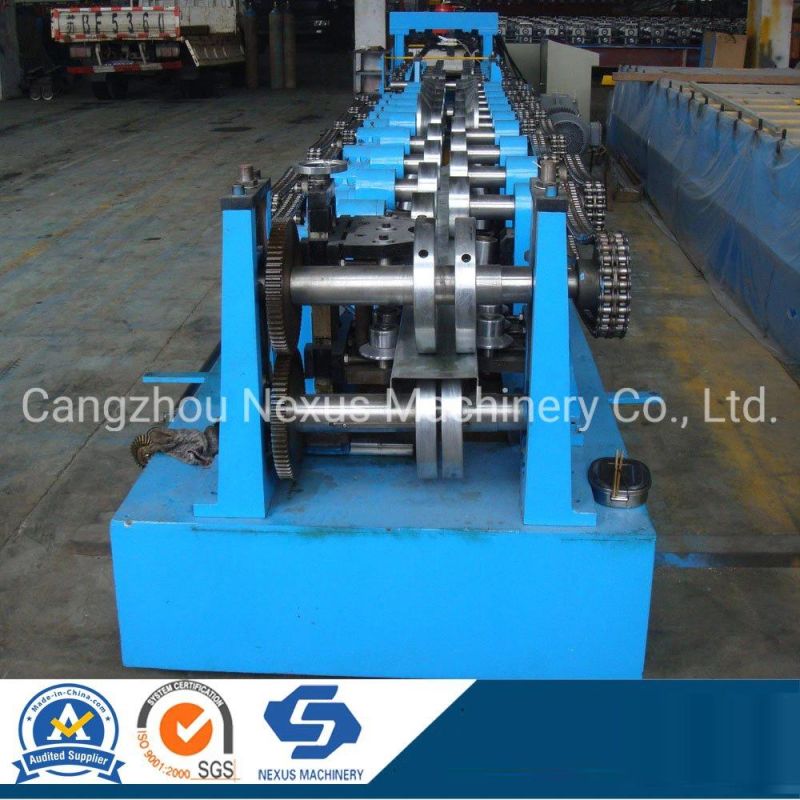

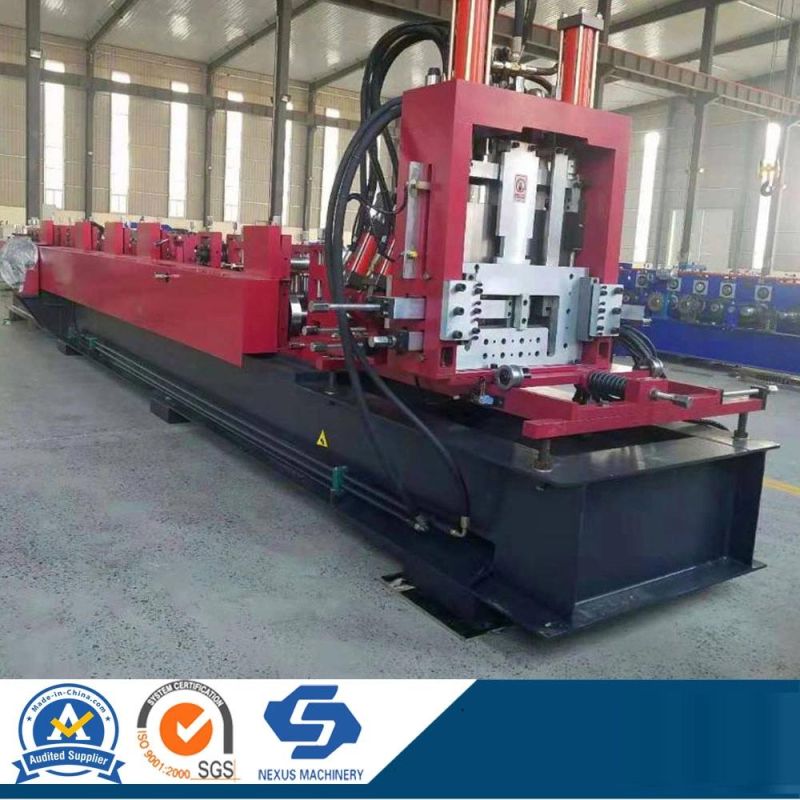

Photo for China Factory Steel Frame And Purlin Making Machines 2.5 mm C Z Purlin Roll Forming Machine







Exhibitions Photos:


ABOUT US:
CANGZHOU NEXUS MACHINERY CO., LTD Company is in producing sandwich panel line all kinds of roll forming machines, such as glazed tile roll forming machine, roof/wall panel roll forming machine, double layer roll forming machine, Full-Automatic C and Z Purlin Roll Forming Machine, floor deck roll forming machine, highway guardrail machine, dust shield machine, ridge cap machine, roll shutter door machine, uncoiling & leveling & slitting & recoiling line, all kinds of decoilers and stackers, and many other related equipments like shear, punch, slitter, leveler, crimping curving, bending and so on,different sizes roofing sheet,PPGI/GI ,Alu-Zinc steel coils ,Galvanized steel coils ,Galvanized steel sheet ,Galvalume steel coils/sheet ,cold/hot rolled sheet/cols , professional service and favorable price , satisfied with the quality ,welcome to every customers come to visit and buy ! ! !We will 24 hourse services for you ,please don't hesitate to contact us when you need.

Company Certificates:


FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
