• Product Name：Steel Frame and Purlin Making Machines
• Coil Material Thickness：1--3mm
• Processing Material：Galvanized Steel
• Roller Material：Cr12MOV
• Roller Station：12-18 Stations
• Driven：Chain Transmission
• Forming Speed：10-15m,Min
• Punching Type：Hydraulic Punching
• Cutting Type：Hydraulic Post-Cutting
• Operation Type：Touching Screen
• Transport Package：Plastic Film
• Specification：80-300
• Trademark：Nexus Machinery
• Origin：Cangzhou
• HS Code：8455221000
• Production Capacity：10

Basic Info.

Product Name Steel Frame and Purlin Making Machines Coil Material Thickness 1--3mm Processing Material Galvanized Steel Roller Material Cr12MOV Roller Station 12-18 Stations Driven Chain Transmission Forming Speed 10-15m/Min Punching Type Hydraulic Punching Cutting Type Hydraulic Post-Cutting Operation Type Touching Screen Transport Package Plastic Film Specification 80-300 Trademark Nexus Machinery Origin Cangzhou HS Code 8455221000 Production Capacity 10

Product Description

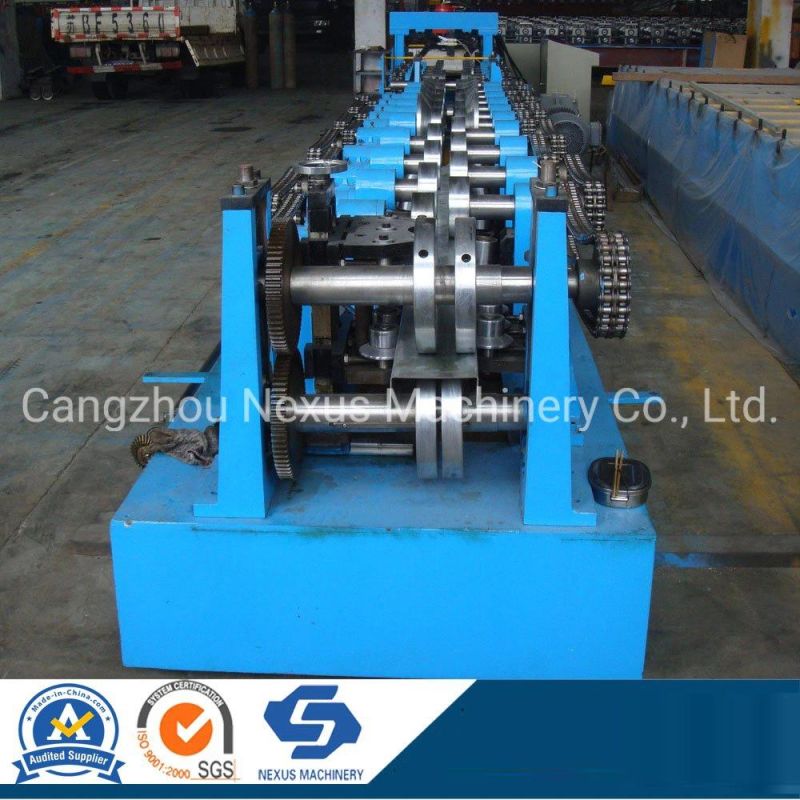

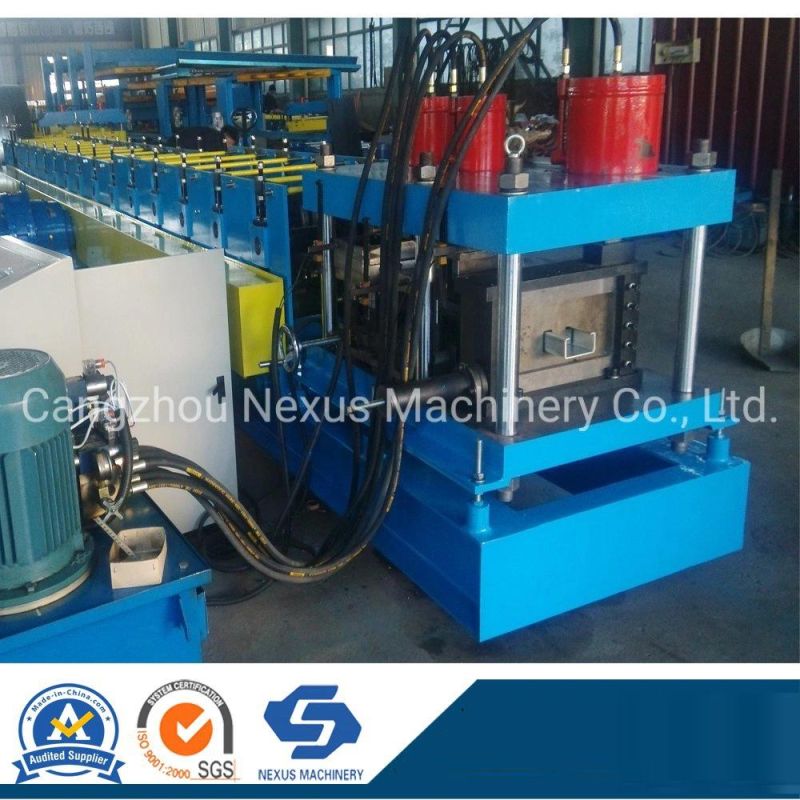

Cheaper CZ Purlin Roll Forming Machine Steel Frame and Purlin Making Machines

Purlin Roll Forming Machine can form hot/cold rolled steel strip and get various specification purlins: C Purlin, Z Purlin, M Purlin, U Purlin.The forming speed can reach to 30m/min .It is fully automatic cold forming line for steel structure industry.
Inline flexible punching system integrated.
C and Z Profile changeovers automatically.
Dimension changeovers automatically.
Material thickness Guage 1.5mm~3.5mm
Straightening unit adapted to easily rectify the distortion and straightness from the bias of material.

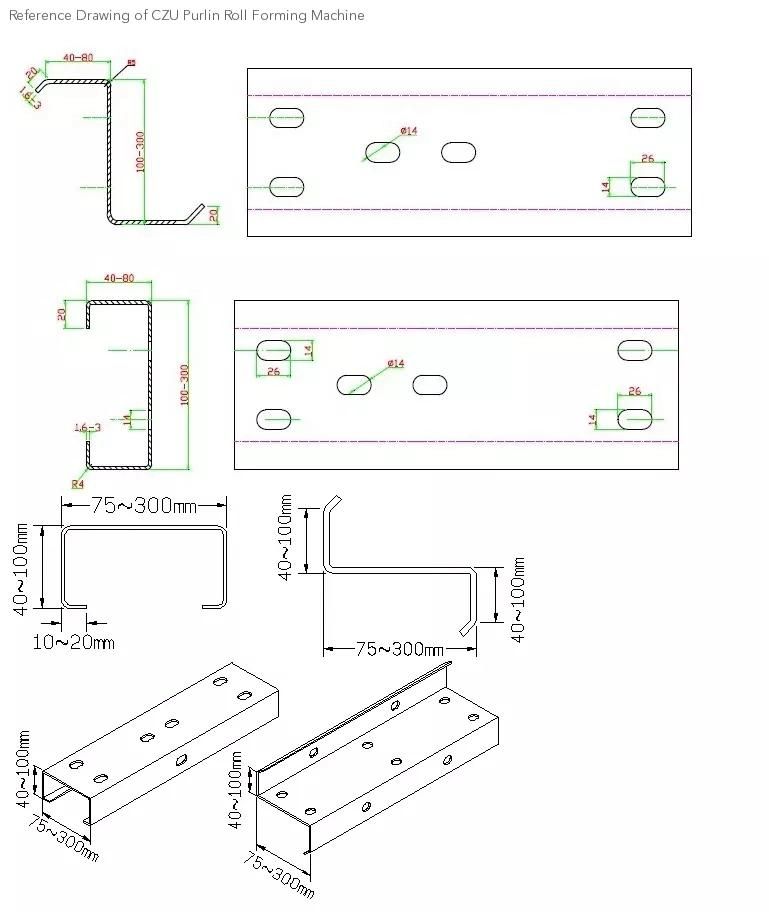

Interchangeable C/Z purlin Roll Forming Machine manufactures both Cee & Zed shaped section channels with shapes and sizes quick changed by PLC control.
For a steel structural building project, people always use Cee and Zed steel purlins (different web sizes and different flange sizes).



Technical parameters :

Product Name	Automatic Change Size CZ Purlin Roll Forming Machine C60-250 Steel Frame Forming Machine

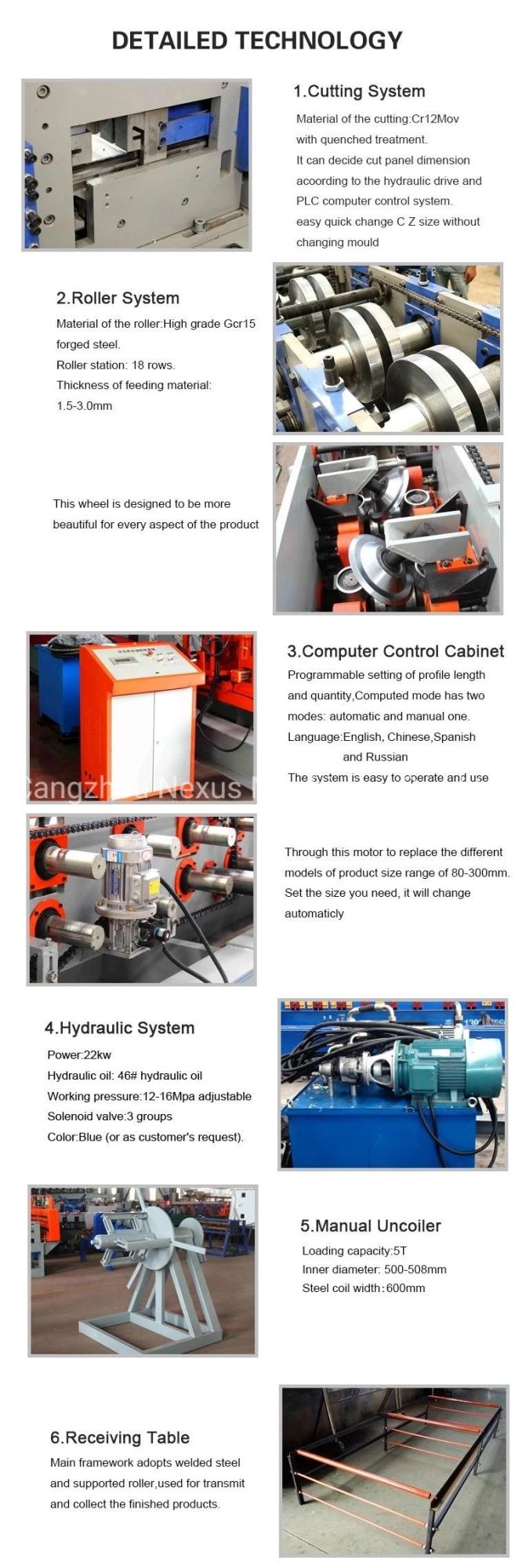

Configurations	Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
Control System	PLC Inverter Encoder Touch Screen
Main Frame	400mm H-Beam
Total Power	19.5 kw
Power Supply	380V, 3-Phase,50Hz
Forming Speed	12-24m/min
Roll Station	18 stands
Decoiler capacity	3.5 tons
Roller Diameter	80mm
Effective Width	80-300mm
Feeding Thickness	1-3.0mm
Backboard Thickness	20mm
Cutter Standard	GCr12
Roller Standard	Gcr15#
Overall Size	About 8500×1000×1400mm
Total Weight	About 6T
Custom	According to customer's requirements

Exhibitions Photos:


ABOUT US:
CANGZHOU NEXUS MACHINERY CO., LTD Company is in producing sandwich panel line all kinds of roll forming machines, such as glazed tile roll forming machine, roof/wall panel roll forming machine, double layer roll forming machine, Full-Automatic C and Z Purlin Roll Forming Machine, floor deck roll forming machine, highway guardrail machine, dust shield machine, ridge cap machine, roll shutter door machine, uncoiling & leveling & slitting & recoiling line, all kinds of decoilers and stackers, and many other related equipments like shear, punch, slitter, leveler, crimping curving, bending and so on,different sizes roofing sheet,PPGI/GI ,Alu-Zinc steel coils ,Galvanized steel coils ,Galvanized steel sheet ,Galvalume steel coils/sheet ,cold/hot rolled sheet/cols , professional service and favorable price , satisfied with the quality ,welcome to every customers come to visit and buy ! ! !We will 24 hourse services for you ,please don't hesitate to contact us when you need.


FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
