Building Material Making Machinery

C Purlin Roll Forming Machine Channel Steel Structure Material Making Machine Cold Formed Steel Frame

Cangzhou Nexus Machinery Co., Ltd.
  • Warranty:1 Year
  • Certification:CE, ISO9001
  • Customized:Customized
  • Condition:New
  • Control Type:Electric
  • Automatic Grade:Automatic

Base Info

  • Product Name:Channel Steel Structure Material Making Machine
  • Coil Material Thickness:1--3mm
  • Processing Material:Galvanized Steel
  • Roller Material:Cr12MOV
  • Roller Station:12-18 Stations
  • Driven:Chain Transmission
  • Forming Speed:10-15m,Min
  • Punching Type:Hydraulic Punching
  • Cutting Type:Hydraulic Post-Cutting
  • Operation Type:Touching Screen
  • Transport Package:Plastic Film
  • Specification:80-300
  • Trademark:Nexus Machinery
  • Origin:Cangzhou
  • HS Code:8455221000
  • Production Capacity:10

Description

Basic Info.

Product Name Channel Steel Structure Material Making Machine Coil Material Thickness 1--3mm Processing Material Galvanized Steel Roller Material Cr12MOV Roller Station 12-18 Stations Driven Chain Transmission Forming Speed 10-15m/Min Punching Type Hydraulic Punching Cutting Type Hydraulic Post-Cutting Operation Type Touching Screen Transport Package Plastic Film Specification 80-300 Trademark Nexus Machinery Origin Cangzhou HS Code 8455221000 Production Capacity 10

Product Description

C Purlin Roll Forming Machine Channel Steel Structure Material Making Machine Cold Formed Steel Frame     With the gimbal driving system, the C Purlin Roll Forming Machine Channel Steel Structure Material Making Machine Cold Formed Steel Frame  has much stronger driving power and is more stable when forming the purlins. Using the PLC control system or handle wheel, the C purlin forming machine automatically adjusts while forming any width of the purlins. It saves time and is much easier than adjusting the spacers of the rollers.

Technical parameters :

Product NameC Purlin Roll Forming Machine Channel Steel Structure Material Making Machine Cold Formed Steel Frame ne
ConfigurationsManual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
Control SystemPLC Inverter Encoder Touch Screen
Main Frame400mm H-Beam
Total Power19.5 kw
Power Supply380V, 3-Phase,50Hz
Forming Speed12-24m/min
Roll Station18 stands
Decoiler capacity3.5 tons
Roller Diameter80mm
Effective Width80-300mm
Feeding Thickness1-3.0mm
Backboard Thickness20mm
Cutter StandardGCr12
Roller StandardGcr15#
Overall SizeAbout 8500×1000×1400mm
Total WeightAbout 6T
CustomAccording to customer's requirements

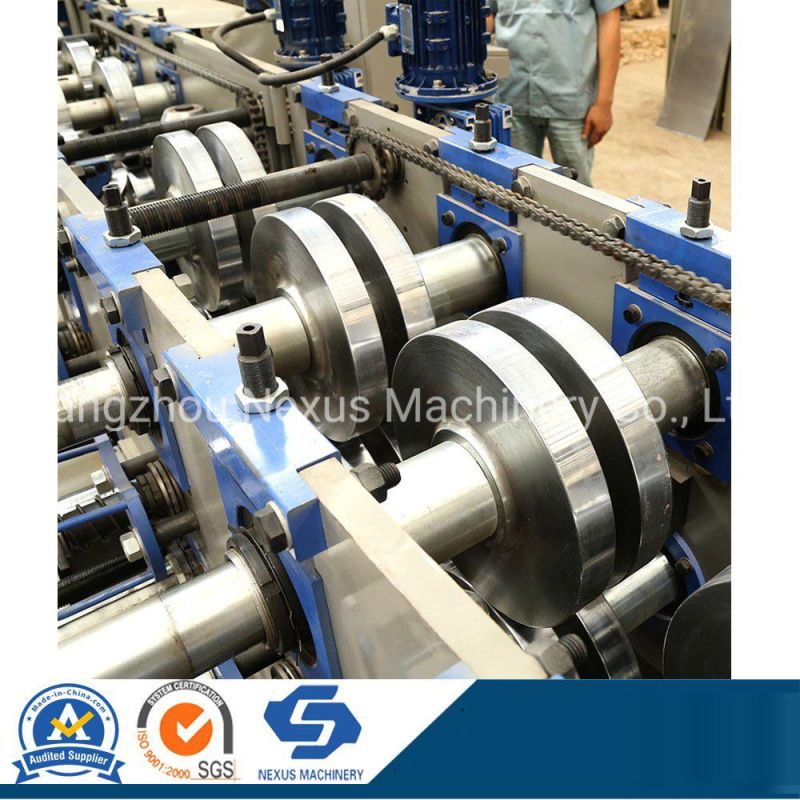

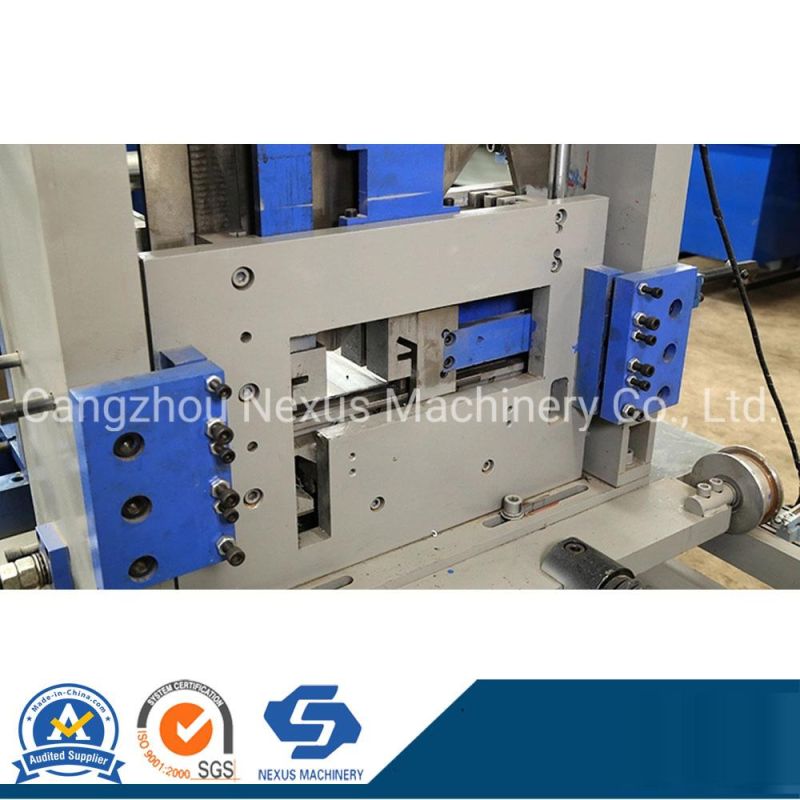

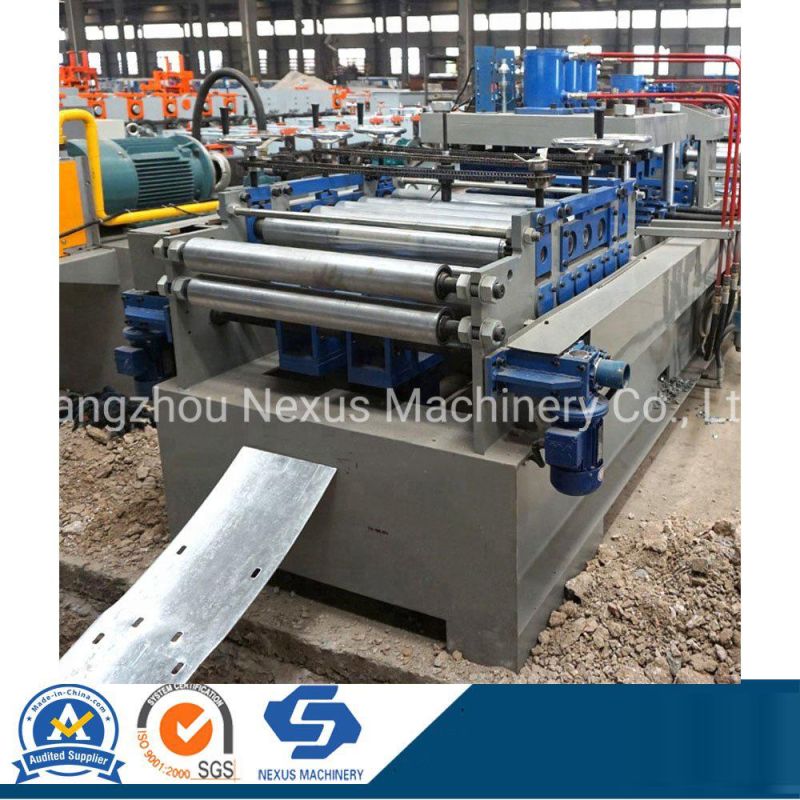

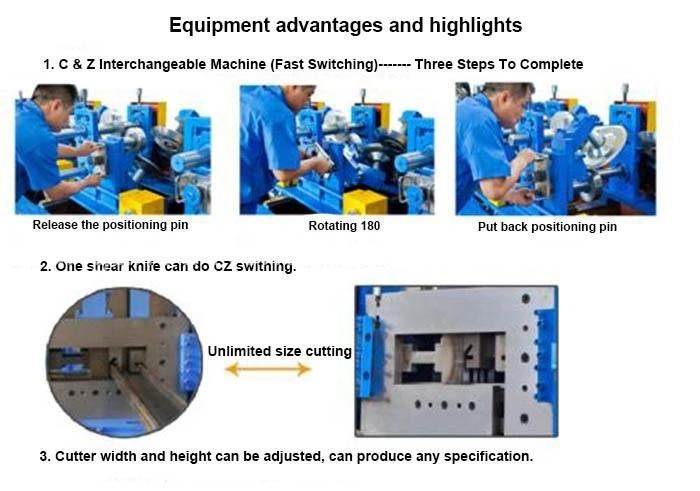

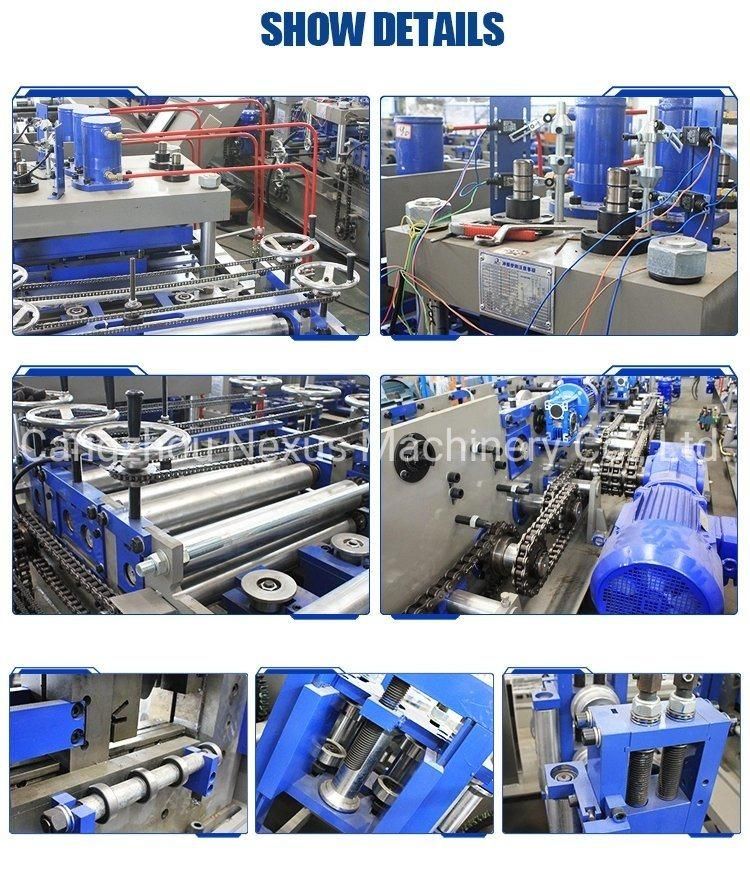

Photo for C Purlin Roll Forming Machine Channel Steel Structure Material Making Machine Cold Formed Steel Frame
C Purlin Roll Forming Machine Channel Steel Structure Material Making Machine Cold Formed Steel Frame
C Purlin Roll Forming Machine Channel Steel Structure Material Making Machine Cold Formed Steel Frame
C Purlin Roll Forming Machine Channel Steel Structure Material Making Machine Cold Formed Steel Frame
C Purlin Roll Forming Machine Channel Steel Structure Material Making Machine Cold Formed Steel Frame
C Purlin Roll Forming Machine Channel Steel Structure Material Making Machine Cold Formed Steel Frame
C Purlin Roll Forming Machine Channel Steel Structure Material Making Machine Cold Formed Steel Frame






Exhibitions Photos:
C Purlin Roll Forming Machine Channel Steel Structure Material Making Machine Cold Formed Steel Frame

ABOUT US:

CANGZHOU NEXUS MACHINERY CO., LTD Company is in producing sandwich panel line all kinds of roll forming machines, such as glazed tile roll forming machine, roof/wall panel roll forming machine, double layer roll forming machine, Full-Automatic C and Z Purlin Roll Forming Machine, floor deck roll forming machine, highway guardrail machine, dust shield machine, ridge cap machine, roll shutter door machine, uncoiling & leveling & slitting & recoiling line, all kinds of decoilers and stackers, and many other related equipments like shear, punch, slitter, leveler, crimping curving, bending and so on,different sizes roofing sheet,PPGI/GI ,Alu-Zinc steel coils ,Galvanized steel coils ,Galvanized steel sheet ,Galvalume steel coils/sheet ,cold/hot rolled sheet/cols , professional service and favorable price , satisfied with the quality ,welcome to every customers come to visit and buy ! ! !We will 24 hourse services for you ,please don't hesitate to contact us when you need.


FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
