Building Material Making Machinery

CNC Double Head Heavy-Duty up Cutting Machines for Window and Door

Shandong Truetec Machinery Co., Ltd.
  • Condition:New
  • Certification:ISO, CE
  • Automatic Grade:Semi-Automatic
  • CNC or Not:CNC
  • Voltage:380V
  • Product Name:CNC Double Head Heavy-Duty up Cutting Machines

Base Info

  • Model NO.:CLJG2S-CNC-600*5000
  • Cutting Motor Power:2*3.0kw 2800r,Min
  • Air Pressure:0.6-0.8MPa
  • Air Consumption:60L,Min
  • Blade Specification:Φ600*Φ30mm
  • Cutting Length:400-5000mm
  • Cutting Width:Max. 150mm
  • Cutting Section:Max. 135*300mm
  • Cutting Angle:45°, 90°
  • Overall Dimension:5750*1300*1500mm
  • Color:Gray or as Requirement
  • Keywprd:up Cutting Saw
  • Transport Package:Simple Stretch Film or Plywood
  • Trademark:TRUETEC
  • Origin:Shandong China
  • HS Code:8465910000
  • Production Capacity:15 Sets Per Month

Description

Basic Info.

Model NO. CLJG2S-CNC-600*5000 Cutting Motor Power 2*3.0kw 2800r/Min Air Pressure 0.6-0.8MPa Air Consumption 60L/Min Blade Specification Φ600*Φ30mm Cutting Length 400-5000mm Cutting Width Max. 150mm Cutting Section Max. 135*300mm Cutting Angle 45°, 90° Overall Dimension 5750*1300*1500mm Color Gray or as Requirement Keywprd up Cutting Saw Transport Package Simple Stretch Film or Plywood Trademark TRUETEC Origin Shandong China HS Code 8465910000 Production Capacity 15 Sets Per Month

Product Description

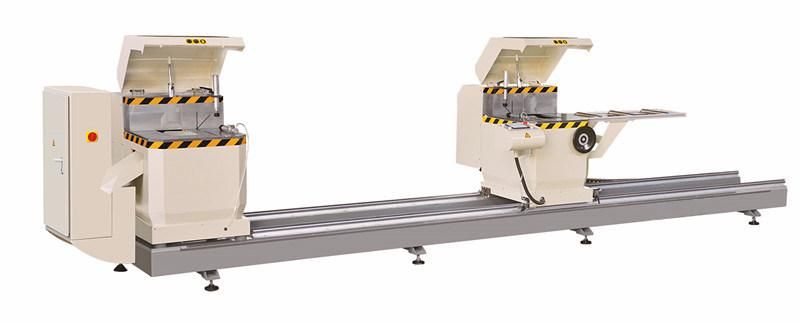

CNC double head heavy-duty up cutting machines for window and door

CNC Double Head Heavy-Duty up Cutting Machines for Window and Door
Equipment Advantages

1, It is used to cut profiles of aluminum alloy curtain wall, window door and plastic (PVC/UPVC) .
2, The use of carbide saw blades, diameter up to 500mm, line of high speed, high precision machining.
3, Right heads feeding adopts pitch ball screw-lead motion, with high accurate driving, locating and smooth working.
4, This machine uses the numerical control technology, profiles of different specifications can be completed automatically under the expected size.
5, Machine during operation, two saw blade can cut, can separate cutting.
6, The saw head can be set to 45 degree and 90 degree.
7, The direction of saw blade is from the bottom to the top which make sawing profile is more safe and reliable, and the cutting height and cutting width are large.

Technical Data


Power supply

380V 50Hz 3P

Cutting motor power

2*3kw, 2800r/min

Operation air pressure

0.6-0.8MPa

Air consumption

60L/min

Blade specification

ø600×ø30mm

Cutting length

400-5000mm

Cutting width

Max 150mm

Max. cutting section

135*300mm

Cutting angle

90°, 45°

Contour dimension

5750*1300*1500mm

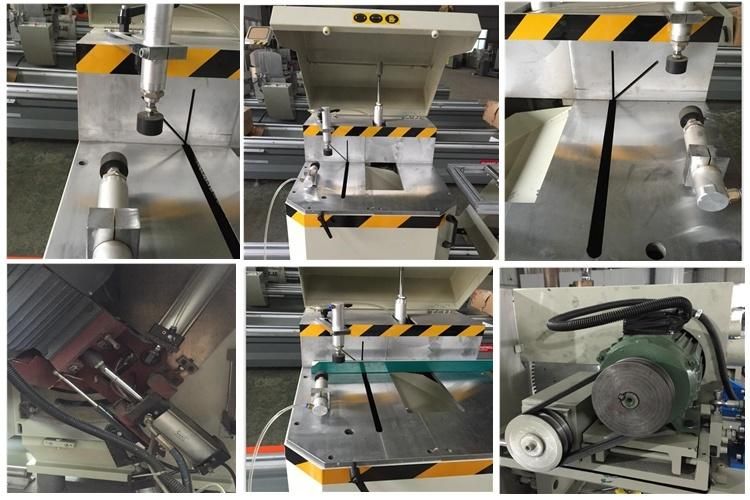

Machines Details
CNC Double Head Heavy-Duty up Cutting Machines for Window and Door
 Main Accessory

Electric Component

Schneider

Buttons

Schneider

Electric relay

Schneider

Motor

Chaoyang

AC Contactor and Circuit Breaker

Schneider

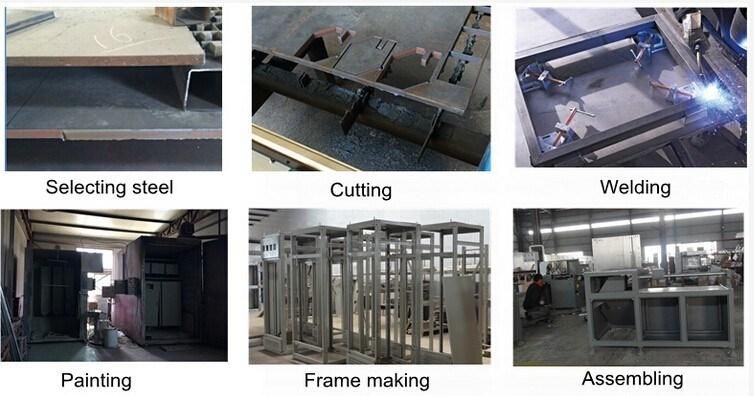

Machine processing

We work with everything from raw material to final machine
, could guarantee machine quality from each step. select each part carefully, we are strive to quality first when machine production and test each machine before delivery.
We will provide the best machine for you.


CNC Double Head Heavy-Duty up Cutting Machines for Window and Door

Packaging&Shipping

CNC Double Head Heavy-Duty up Cutting Machines for Window and Door

Our Services

Before payment

Free contact for the most suitable machine

Free professional design for each customer especially.

After sale service

24 hours technical support by phone, email or skype (email or skype) .

1years warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.

Payment

♦ L/C, 30% deposit by T/T,70% spare payment L/C.

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal.

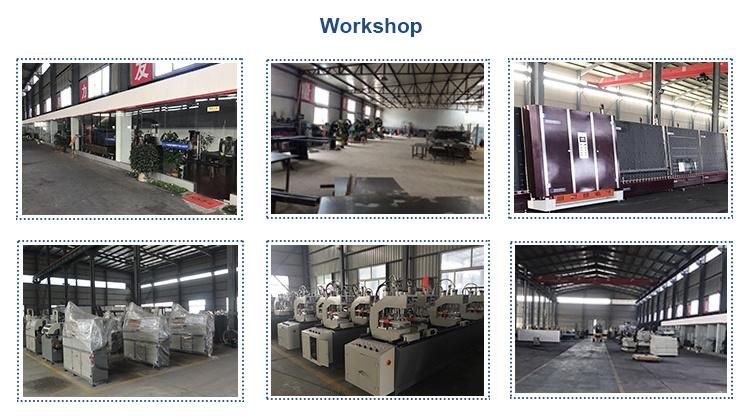

Our Company



Welcome To Visit

Our company is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force.


With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
CNC Double Head Heavy-Duty up Cutting Machines for Window and Door
CNC Double Head Heavy-Duty up Cutting Machines for Window and Door
CNC Double Head Heavy-Duty up Cutting Machines for Window and Door
Our Exhibition
CNC Double Head Heavy-Duty up Cutting Machines for Window and Door
FAQ


1. When can we arrange shippment?
We usually arrange shippment within 25 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
