Basic Info.

Model NO. BYSJ Customized Customized Type Sheet Extruder Plastic Processed PVC Feeding Mode One Feed Assembly Structure Separate Type Extruder Screw Twin-Screw Engagement System Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Transport Package PVC Film Specification CE SGS Trademark BOYU Origin Wuxi HS Code 8477209000 Production Capacity 20/Month

Product Description

PVC Foam Board Production Line/WPC Floor Production Line
I. Design parameters

No.	Items	Data
01	Operation Conditions	380V/3 phases/50Hz, DC24V.
02	Raw Material	PVC powder, calcium carbonate, wood flour, auxiliary chemicals
04	Main material proportion	PVC: CACO3= 1:3
05	Product specifications	Width:1050mm/1350/1850/ 2500 for optional Thickness: 2- 40mm
06	Extrusion line mode	SJSZ 80/156 conical twin screw extrusion line
07	Quality standard	Twin screw standard JB6492-2001 Electricity standard: GB5226.1-2008/IEC  60204-1:2005
08	Machine Fabrication Certificate	CE /UL
09	Electric components certificate	CE /UL /CSA

II.Equipment List & Quantity

No.	Equipment Name	Quantity	Remark
01	Φ80/156 Conical twin-screw extruder	1 Set
02	Extrusion die	1 Set
03	Forming platform	1 Set
04	16-rollers tractor	1 Unit
05	Lengthwise cutting tool holder	1 Set
06	Auto plate lifter	1 Unit
07	Longitudinal edge cutting mechanism	1 Unit
08	Plate bracket	1 Set
09	Length meter	1 Set
10	Plate shearing machine	1 Set
11	Automatic stacker	1 Unit
12	Electric control cabinet	1 Unit

III. Production process:

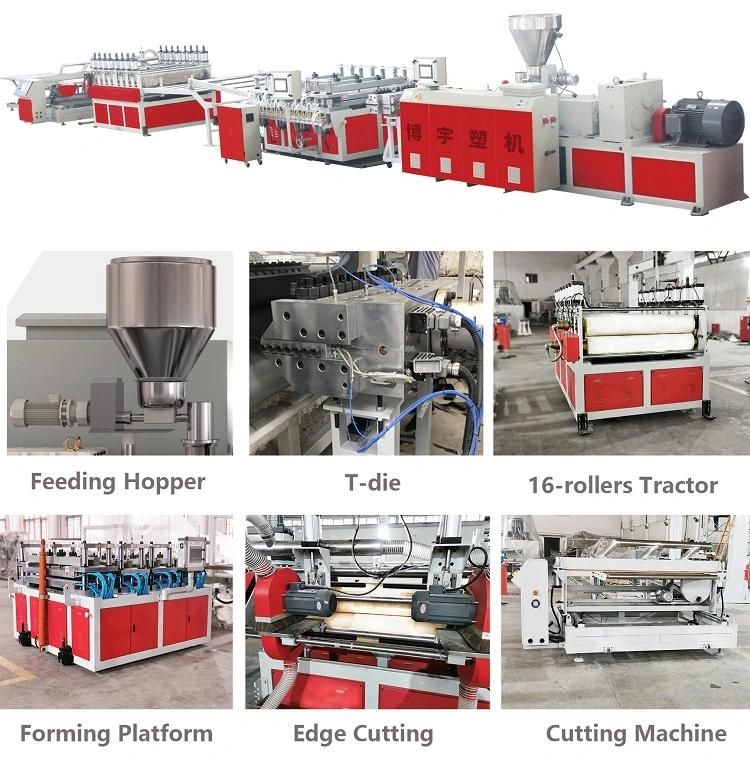

The screw feeder takes the material from the 5m³ silo(~ 3 tons) → The Extruder Feeding Hopper → The extruder → Material Plasticizing → T-die → Forming Platform →Edges Trimming → Roller Cooling Bracket →Air Cooling Cabinet(Optional) → Traction Machine→ Cutting Machine →Automatic Stacking Machine


IV. Main technology parameter of extruder

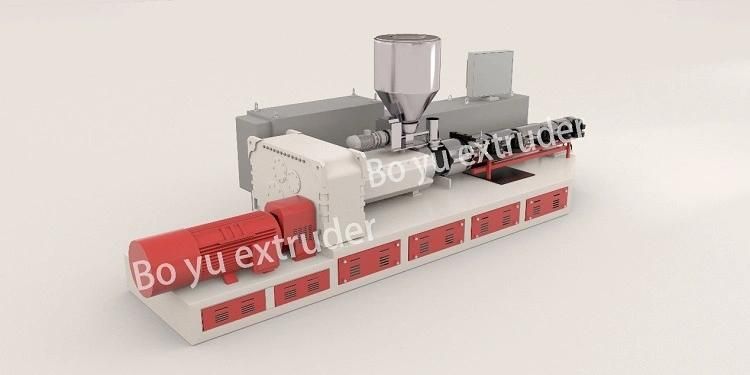

• Conical Twin-screw Extruder



Extruder Model	Capacity/24h	Capacity/h	4mm Linear Speed
SZJZ-80	6-8T	250-350KG	0.4-0.6m/min
SZJZ-92	8-12T	500-700KG	0.8-1.3 m/min

V. Finished Products


VI. Boyu Company Profile


VII. Our Services

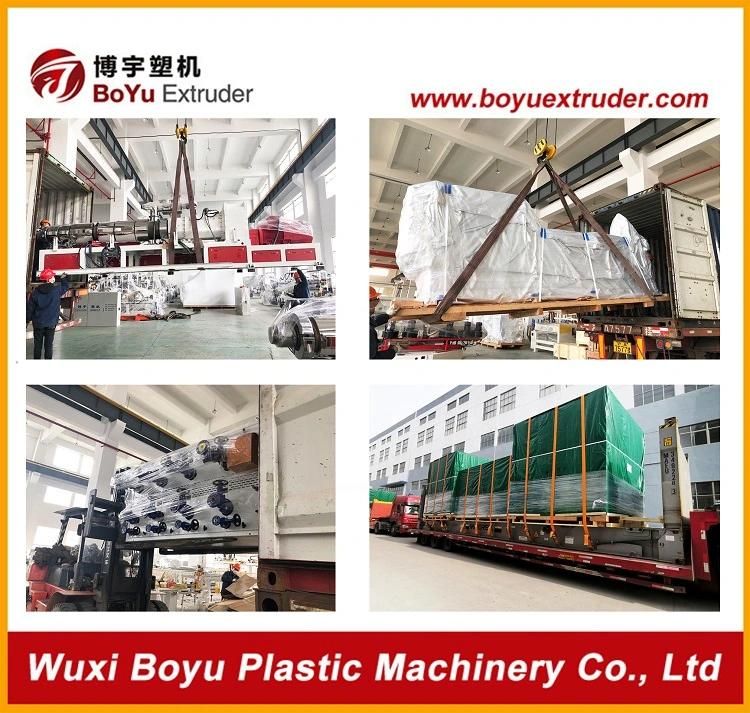

VIII.Shipping

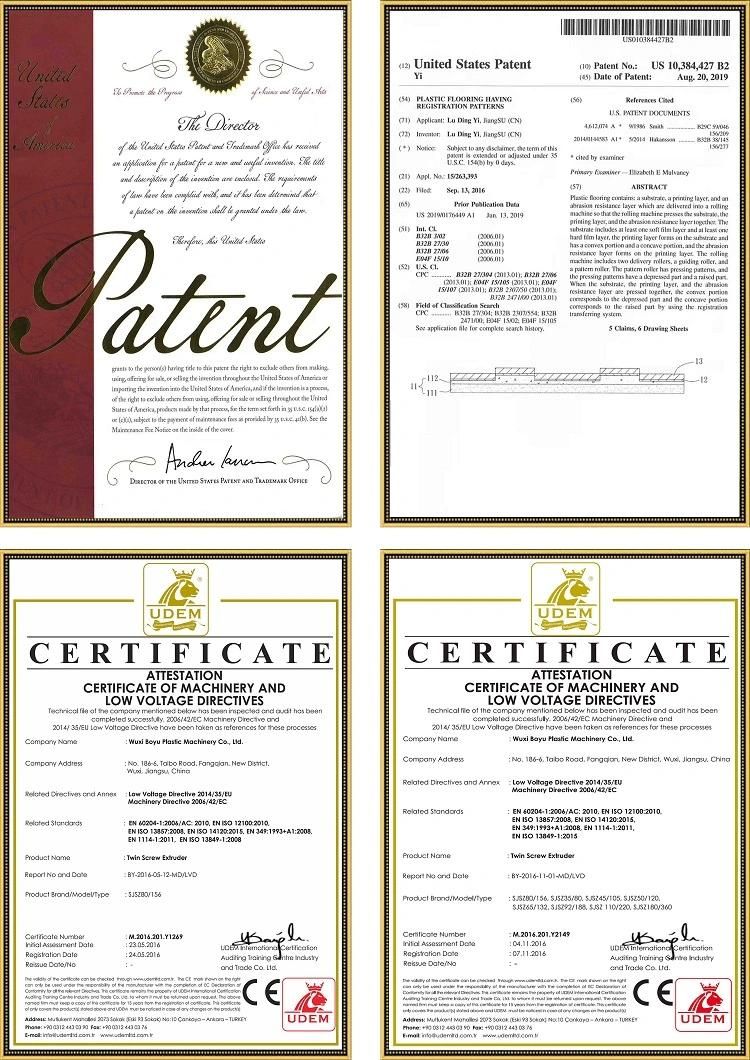

IX. Patent
