• Model NO.：ZY-HF76
• Pipe Diameter：30-89mm
• Pipe Thickness：1.2-4.0mm
• Pipe Shape：Round
• Uncoiler：Double-Head or Single-Head
• Solid State High Frequency：300kw
• Cutting：Flying Saw
• Main Motor：132kw
• Color：as Your Requirement
• Max. Speed：70m,Min
• Transport Package：Rain-Proof Package, Shipping
• Trademark：Zhangyun Machinery
• Origin：Zhangjiagang City
• HS Code：8515219000
• Production Capacity：10sets,Month

Basic Info.

Model NO. ZY-HF76 Pipe Diameter 30-89mm Pipe Thickness 1.2-4.0mm Pipe Shape Round Uncoiler Double-Head or Single-Head Solid State High Frequency 300kw Cutting Flying Saw Main Motor 132kw Color as Your Requirement Max. Speed 70m/Min Transport Package Rain-Proof Package, Shipping Trademark Zhangyun Machinery Origin Zhangjiagang City HS Code 8515219000 Production Capacity 10sets/Month

Product Description

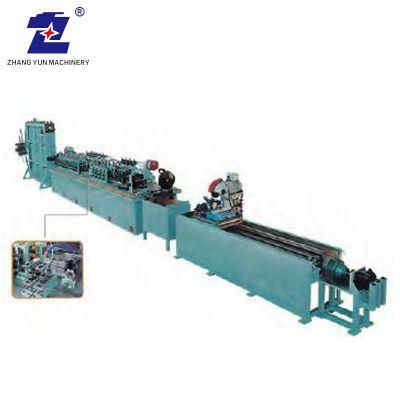

Automatic Production Line PLC Control Steel Seam Tube Square Round Pipe Roll Forming Making Machine China Manufacturer



Technical Paramters
INCOMING RAW MATERIAL

Raw material	HR,CR carbon steel coil
Tensile Strength	σb≤600Mpa
Yield Strength	σs≤315Mpa
O.D of steel coil	Max. Φ1600mm
I.D of steel coil	Φ508mm
Weight of steel coil	Max. 3 ton/coil
Round Pipe Wall thickness	1.2 ~4.0mm
Strip condition	Slitting edge
Strip thickness tolerance	Max. ± 5%
Strip width tolerance	± 0.1mm
Strip camber	Max. 5mm/10m
Burr height	≤ (0.05 x T) mm (T-strip thickness)

    MACHINE CAPACITY

Round pipe	Φ30~ Φ89mm 1.2 ~ 4.0mm
Cutting length	4 ~ 12m
Length tolerance	Cold saw ± 2.0mm, Hot Saw ± 3.0mm
welding speed	0~70m/min
Strip storage	Vertical accumulate loop
Main mill driver motor	DC132kw
Solid state high frequency	GGP-300kw


Working Process
Double-head un-coiler →→Strip-head Shearer & TIG butt welder station →→Horizontal spiral accumulator group →→Forming M/C (Main driving unit + Flattening Entry unit + Breakdown section + Fin pass section + Seam guide unit + High frequency induction welding system + Squeeze welding roller unit + Outside scarfing unit + Horizontal ironing stand) →→ Emulsion water Cooling section →→ Sizing M/C (Main driving unit  + Sizing section + Speed testing unit + Turk straightener + Vertical pull-out stand) →→ NC flying saw under computer control →→ Run-out table


 FAQ:Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.

Q: What about our after-sale service?
A: we provide technical support on line as well as overseas services by skillful technicians.

Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.

Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
     2) We welcome you visit us and test machine by yourself in our factory.
 Q: what is the MOQ?
A: One set

Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.

Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
